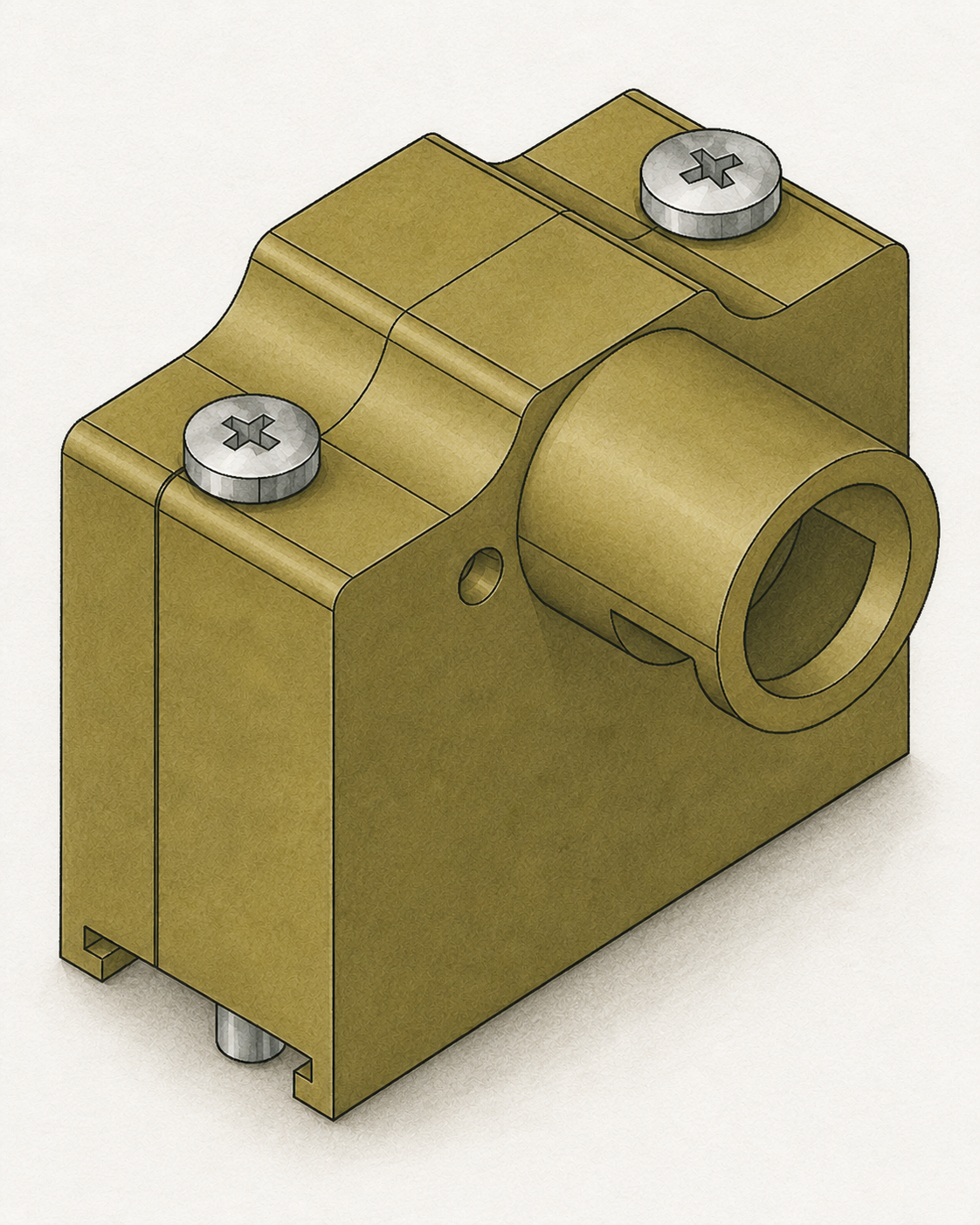

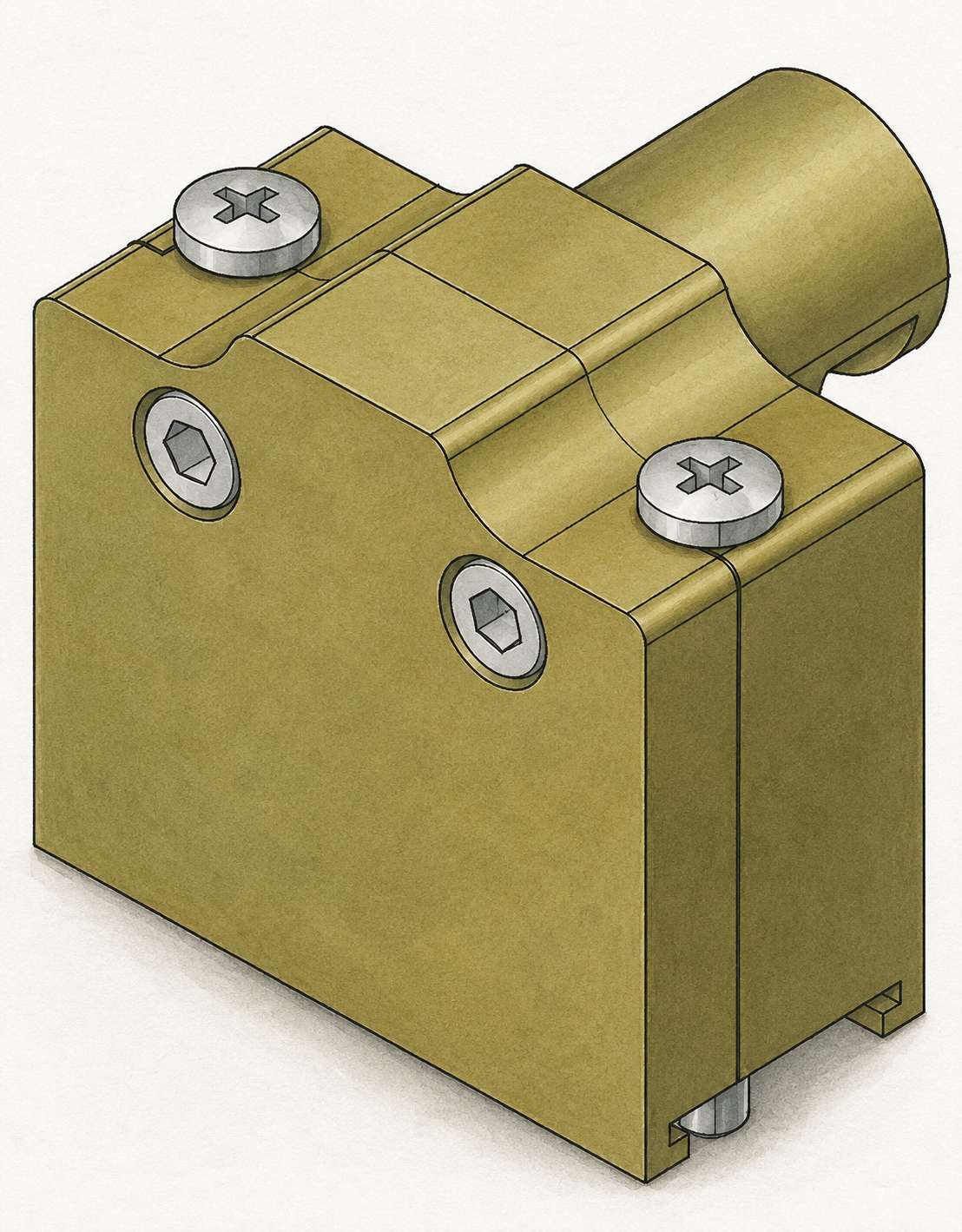

Low Profile 90° D-Sub Backshell (side-entry)
Low Profile 90° D-Sub Backshell (side-entry)
This low-profile 90° D-sub backshell is intended for applications where connector packaging space is limited and standard backshells are either too bulky, too expensive, difficult to source, or unavailable on your timeline.
Our goal is to make this part easy to evaluate, easy to order, and available from stock if there is sufficient demand.
Details:
- 90° long-side cable exit
- Low installed height from the rear face of the connector flange
- Aluminum body with chem-film finish
- Cable OD up to 9 mm
- Metal cable-tie strain relief
- Designed for low-profile packaging around D-sub connectors
- Target availability: August 1, 2026, pending demand
Interested in this part?
We’re using customer feedback to prioritize connector sizes and first production quantities. If this or something like it solves a packaging problem for you:
- Download the STEP file.
- Optional but highly appreciated: Send us your feedback, connector shell size, cable diameter, and estimated quantity.
Need a specific size, modification, or earlier delivery?
Request a quote and we’ll see what we can support.

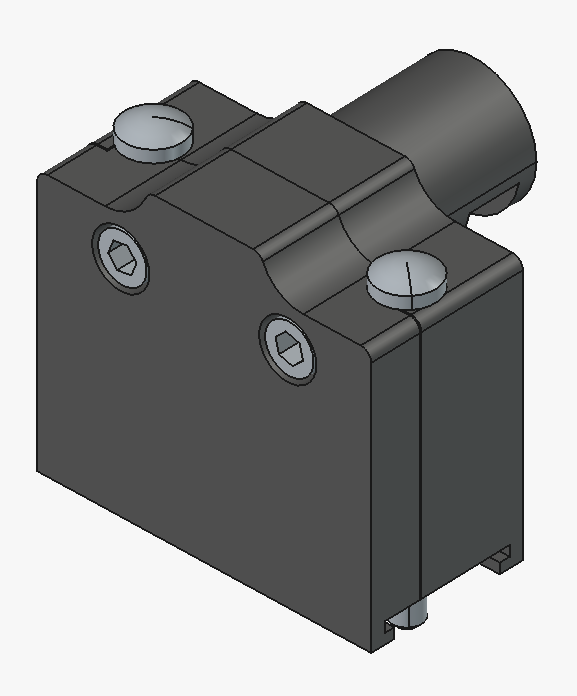

3D Model
